The Quadrant

The Quadrant is where you'll spend the majority of your time identifying, documenting, and tracking remediation for each identifier you intent to implement.

Some of it has been filled out for you, but you are free to change, remove, add, and pretty much do whatever you want to make the system unique for your company.

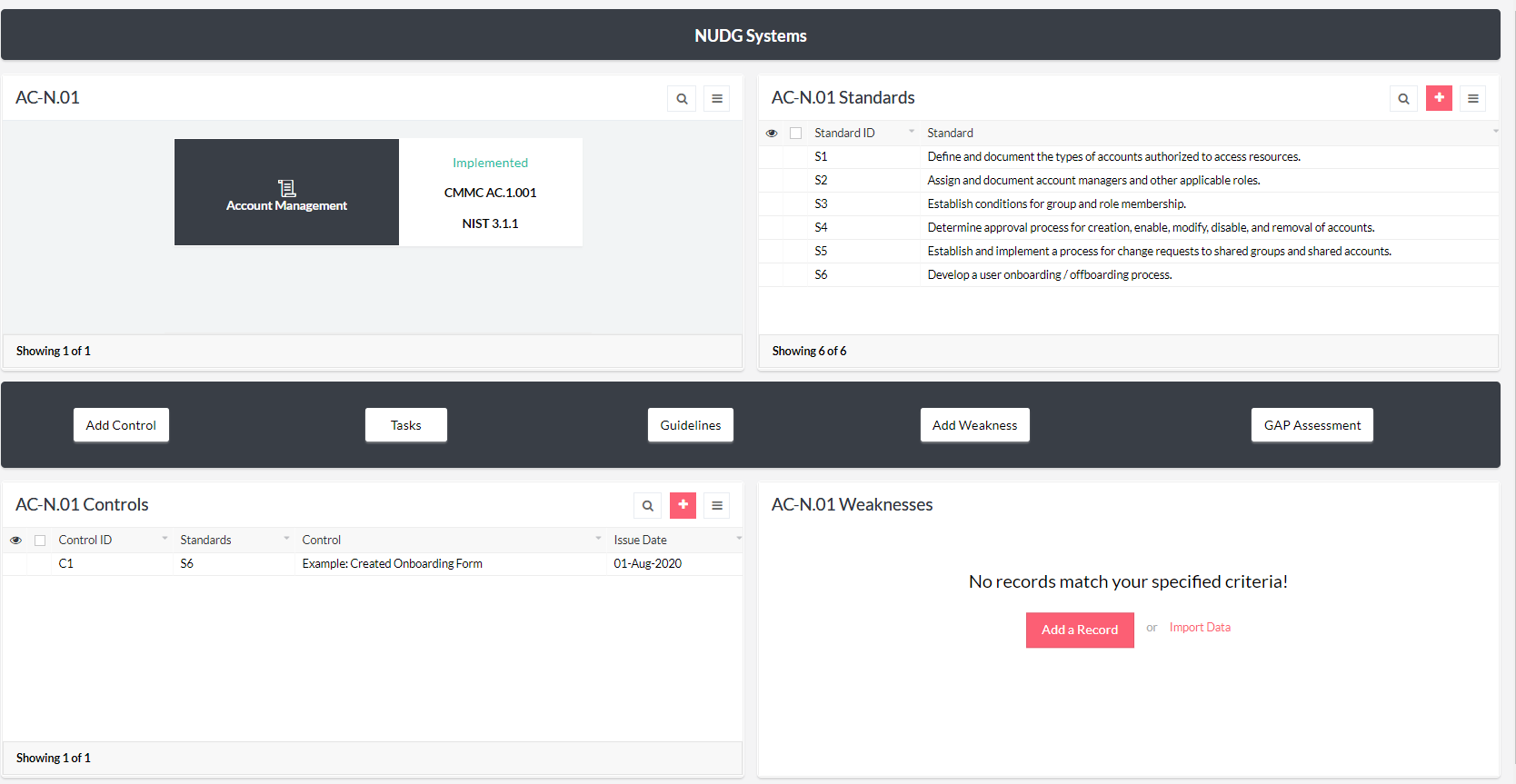

It consists of four major parts.

The status card (Upper left)

Standards (upper right)

Controls (bottom left)

and Weaknesses (bottom right)

STATUS CARD

The status card is a break down of everything in the quadrant and is capable of mini reports specifically for this identifier.  A left click will bring up the overview.

Once the overview is up, if you click Edit within the report, you can change values from here.  The only values you should edit are on the right side starting from Status.  You can change the status at any time for the identifier and it will update the dashboard graph.

The four statuses are as follows:

Implemented - Fully Implementation, Identifier satisfied

Non-Implemented - Default status, identifier not started

In-Progress - Active remediation, Identifier in-progress

Deficient - Active remediation, Identifier has defined weaknesses that require resolution

From here, you can also select as many standards, controls, or weaknesses you'd like to display in the overview as they are created.  This is key for customizing single reports for the identifier, or pulling large reports.  You may choose not to display some information (for example, Weaknesses are not necessary for a CMMC only style report).

Due to procedures being more technical in nature, they have been left off the reporting page.  Same applies for milestones.

STANDARDS

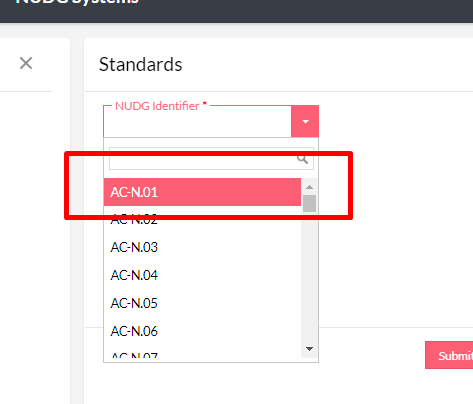

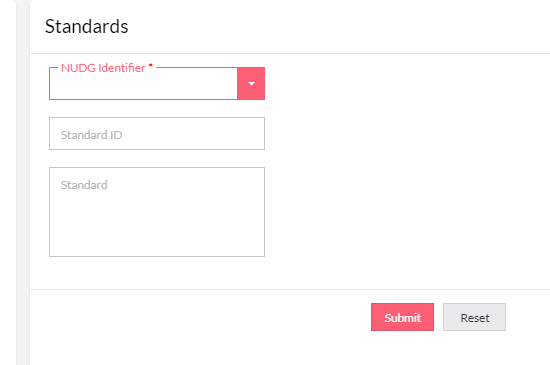

Standard are your overall goals.  What you're trying to achieve to satisfy the identifier as it pertains to the family.  We have added baseline standards to every policy to provide guidance on goals that should be met.  Standards can be removed or added as  needed.  When adding a standard you MUST supply the current identifier to properly link it to the quadrant via the drop down, or by typing the Identifier out.  This ensures proper linkage in the database and is the most crucial step.  You may label Standard ID's any way you wish, currently we have labeled them S#'s in order.

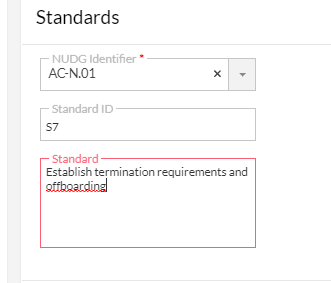

After typing your standard, you can submit and you'll see it appear in the Quandrant.

CONTROLS

Controls are the methods in which you will satisfy any given standard.  Every control will be tied to a specific standard.  You may add controls directly from the Quadrant, or select the Add Control button to bring up a new pop out window to get a better view with some more screen real estate.

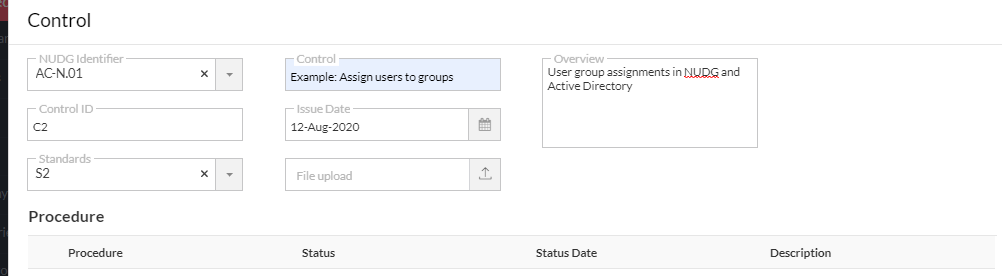

Just like adding Standards, you MUST supply the identifier you're working within to keep the database linked.  Furthermore, you need to select the standard ID in which the control applies.  You may add supporting documentation (think custom forms, screen caps for verification and reference material, and/or evidence) via the file upload button.

Controls should be short and direct, they are merely an overview of how you are satisfying the standard.

Procedures are where you will detail out how the control is implemented.  Procedures and milestones are similar in which you can detail out technical aspects of how you are implementing or remediating.  Procedures are not on final reports, as they are used as a basis to create an audit level control.  Consider them internal instructions for reference and for your team, to understand how the control was satisfied.

Some controls will have simple procedures or no procedures at all.  Others may be more complex if you plan on referencing GPO's that are enforced to satisfy a specific control.

WEAKNESSES (Deficiencies)

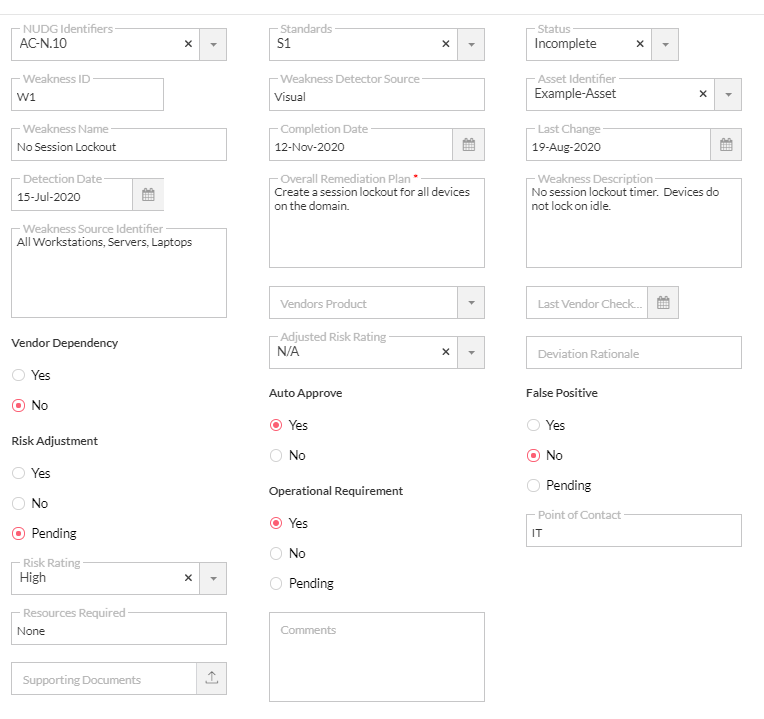

Weaknesses and deficiencies are the same, and are interchangeable in relation to NIST/CMMC.  The weakness form's fields are all called for/required by NIST.  We have left the majority of the fields as "not required" as at times weaknesses may require some time and research to create.

Weaknesses are only required for NIST to establish your PoAM.  However, it's highly recommended to use them anyway, even if you're exclusively focused on CMMC.  They provide a strong reference point of history as well as guidance on the controls you may need to create to remediate the weakness.

As with controls and standards, you MUST supply the identifier for linkage.  All weaknesses will be tied to a standard.

Weaknesses are similar to controls in which you can add via the Quadrant, or select "Add Weakness" for a better pop up view.

Much like procedures, milestones provide supporting history of remediation of the weakness.  Once all milestones are completed and implemented, the weakness can be completed.

Many Identifiers are satisfied just for completely basic items in NUDG.  For example, if you choose to use our Users, Groups, & Roles form, the bulk of AC-N.01 will be completed

Lastly, it is not required to use our naming for Standards, Controls, or Weaknesses.  For example, S1 could be any Standard1, or AC-N.01-S1.  Same goes for Controls and Weaknesses.
