NUDG Introduction

NUDG Introduction

Welcome to NUDG Systems.  This guide is meant to give you a brief overview of how we recommend starting your journey on cyber security compliance.

While there's no right order to manage things, setting up the foundation correctly at the beginning can save you future headaches as you're diving into the family policies.

Before getting started, it's important to note that you should NEVER store passwords, CUI data, or sensitive information (firewall secret keys/passphrases or encryption keys), inside a cloud based system.  NUDG is a living document tracking system to keep your security compliance clean, organized, and easy to reference.  It is not a password keeper, and per CMMC and NIST requirements, CUI data especially needs to be controlled and kept offline as much as possible.

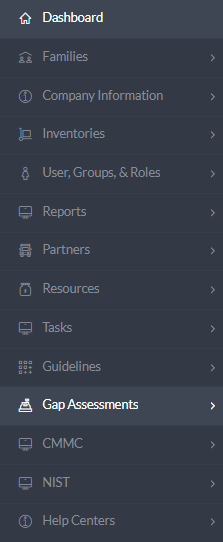

Navigation Menu

We'll start with the navigation menu.  In order you have the following:
Dashboard - Your main starting point to track progress and tasks
Family Policies - The "guts" of the system, containing all the families and identifiers
Company Information - This is where you can add your own company details, as well as related companies
Inventories - Your inventory system and firewall ports and protocols
User, Groups, & Roles - Users, Groups, and Role Mapping
Reports - The main reporting functions
Partners - Vendors and Suppliers
Resources - Incident response reporting, and where to store generic templates such as AUP (Acceptable Usage Policy) or any supporting documents you need to track, such as cyber security training
Tasks - Events and Tasks
Gap Assessments - Full gap assessment (the GAP Assessment is also broken down in the Identifier Quadrant, sorted to it's appropriate card)
CMMC - The CMMC levels pulled out and sorted to their appropriate levels.  Changes here will make changes to the appropriate family cards as well.
NIST - NIST Controls and NIST NFO's, pulled out and sorted.  Changes here will make changes to the appropriate family cards as well
Help Center - Direct links to these articles as well as your own personal tool to hyperlink data you feel is useful

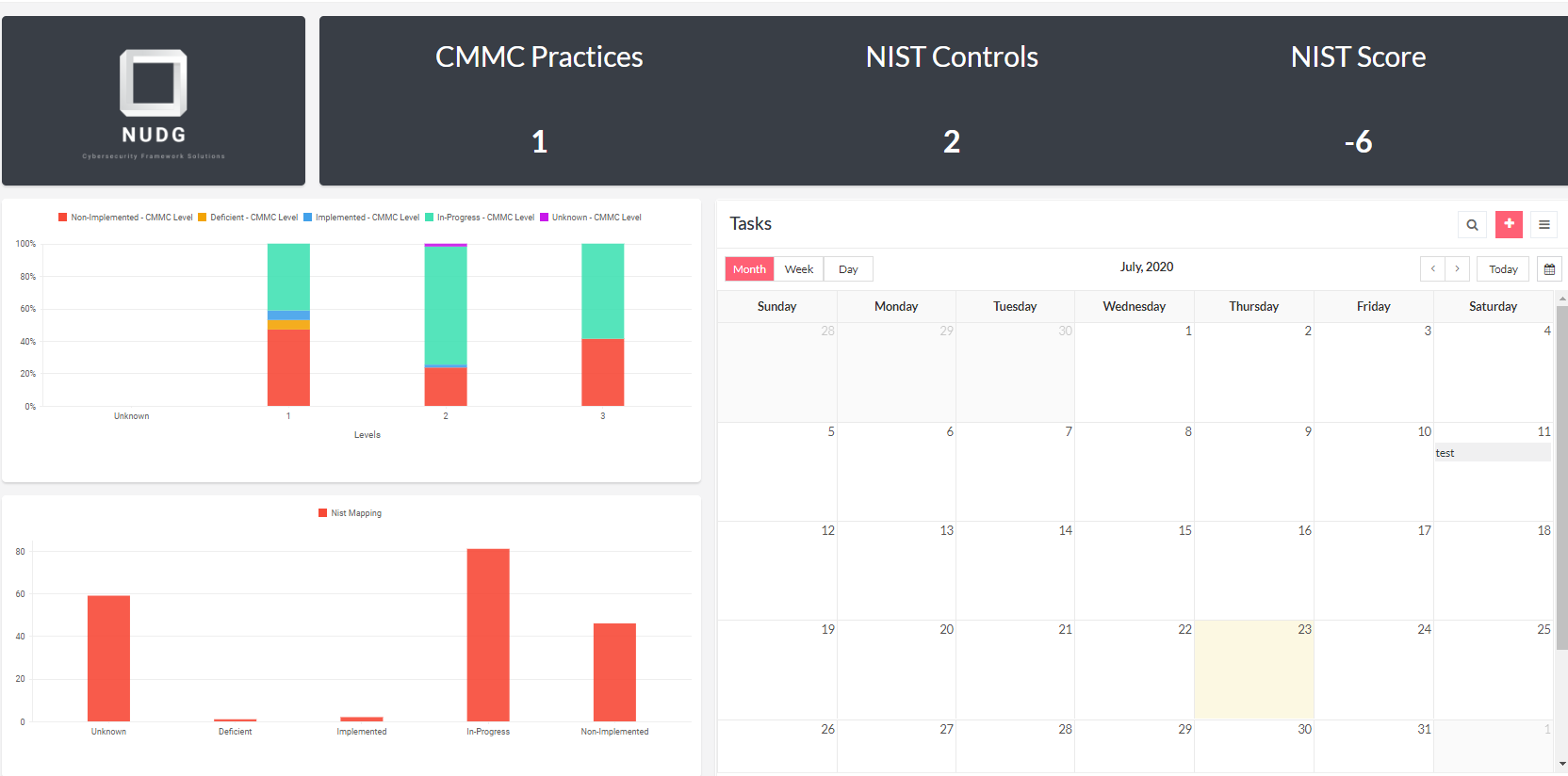

DASHBOARD

Below is your primary starting point for navigation and the main dashboard.  On the top you'll see completed CMMC Practices, NIST Controls, and your total point allocation of the methodology system.  On the bottom left, you'll see your completion status on the graph bars.  On the bottom right, you'll see any open Tasks you have created.




Before you get started, you should determine what your goal is.  Even though NIST and CMMC overlap, they do have different requirements.  Please refer to the CMMC or NIST specific help guides to see the differences.

Regardless of which you choose, if you plan on using NUDG to handle your users, roles, groups, and inventory.  That is where we recommend starting.  The reason for this is you can later map the associated items when creating weaknesses (also known as deficiencies), allowing for a more organized and cross linked approach.  The more information you give, the more thorough your end results will be.

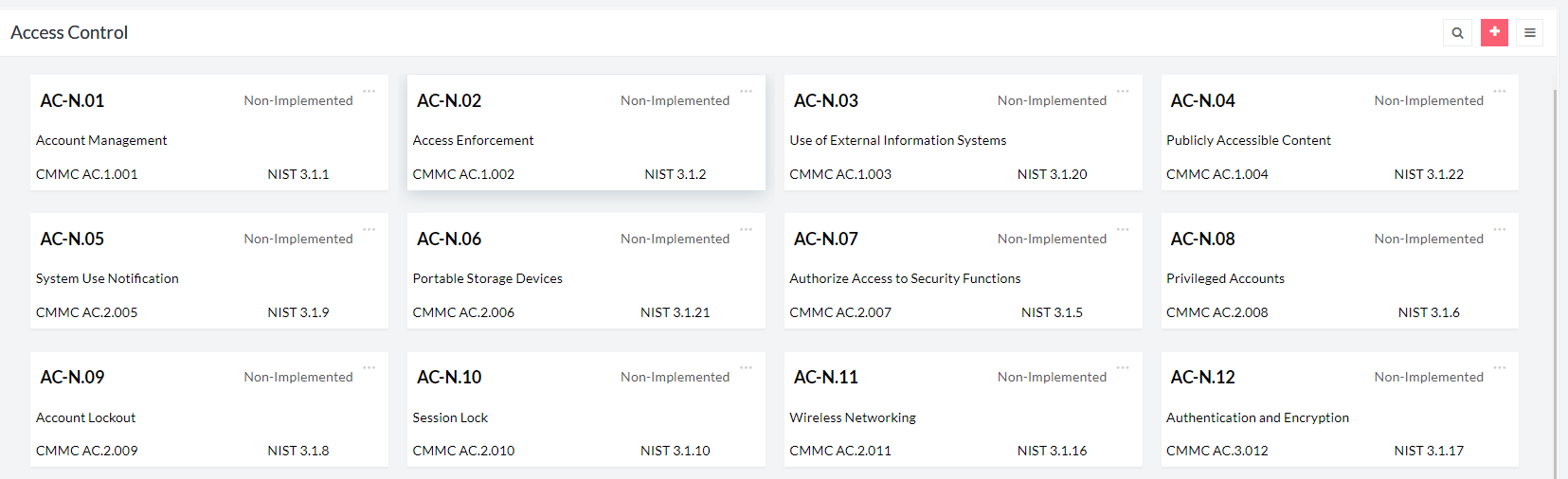

Family Policies



Your family policy (or written Policy) is on the header of each family.  These are locked in, and added to reports:




The scope and overview are covered by the identifiers themselves via the sub title, and various information within each identifier.  Each identifier together satisfy the broad policy statement in different ways.

Identifiers:


Please see the Quadrant section for further information about Identifiers.
